ROLdour Frame Measurements -
Back of the frame - Flush rear for fixing against a flat surface or mounted in a frame

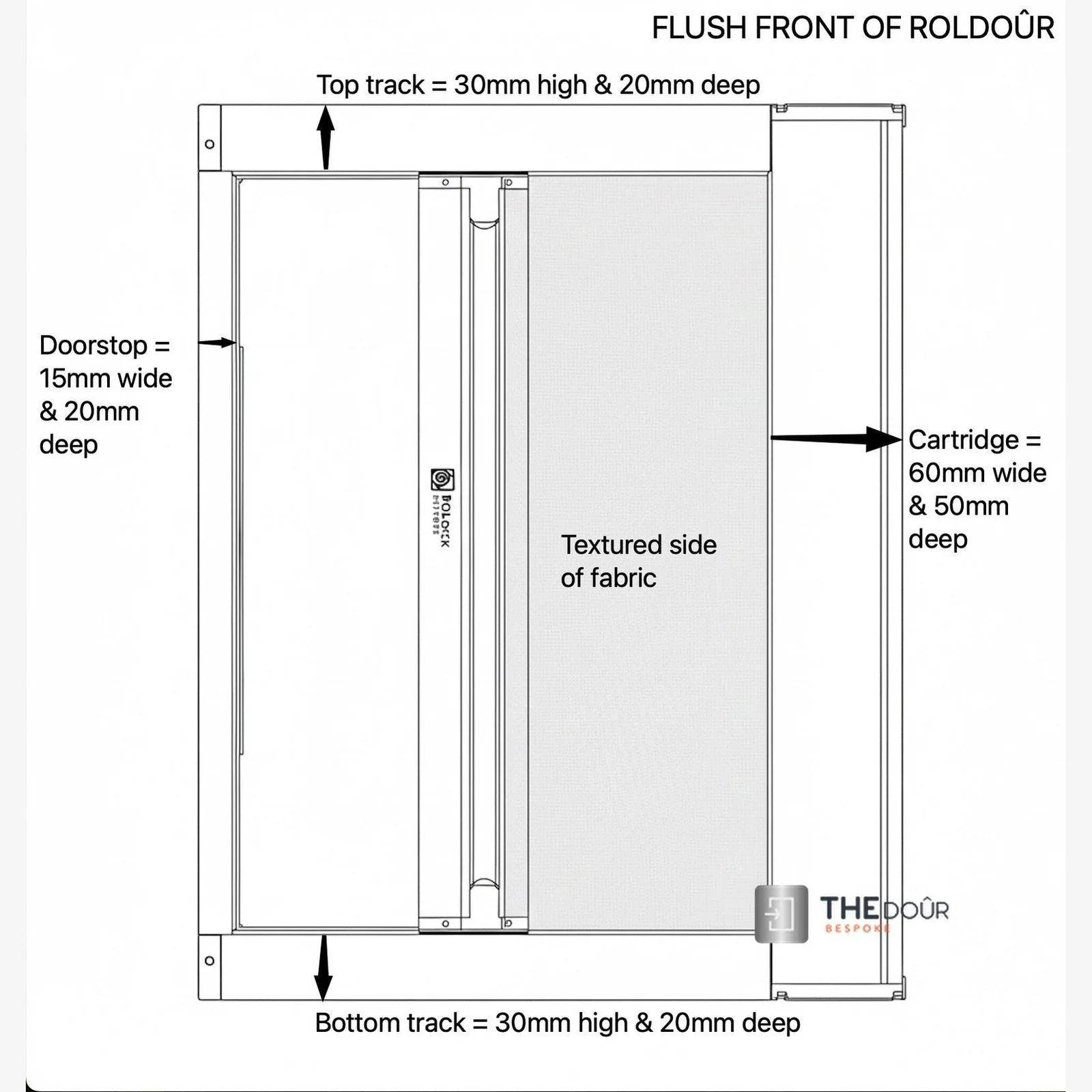

Top and bottom tracks - 20mm deep and 30mm high (each track)

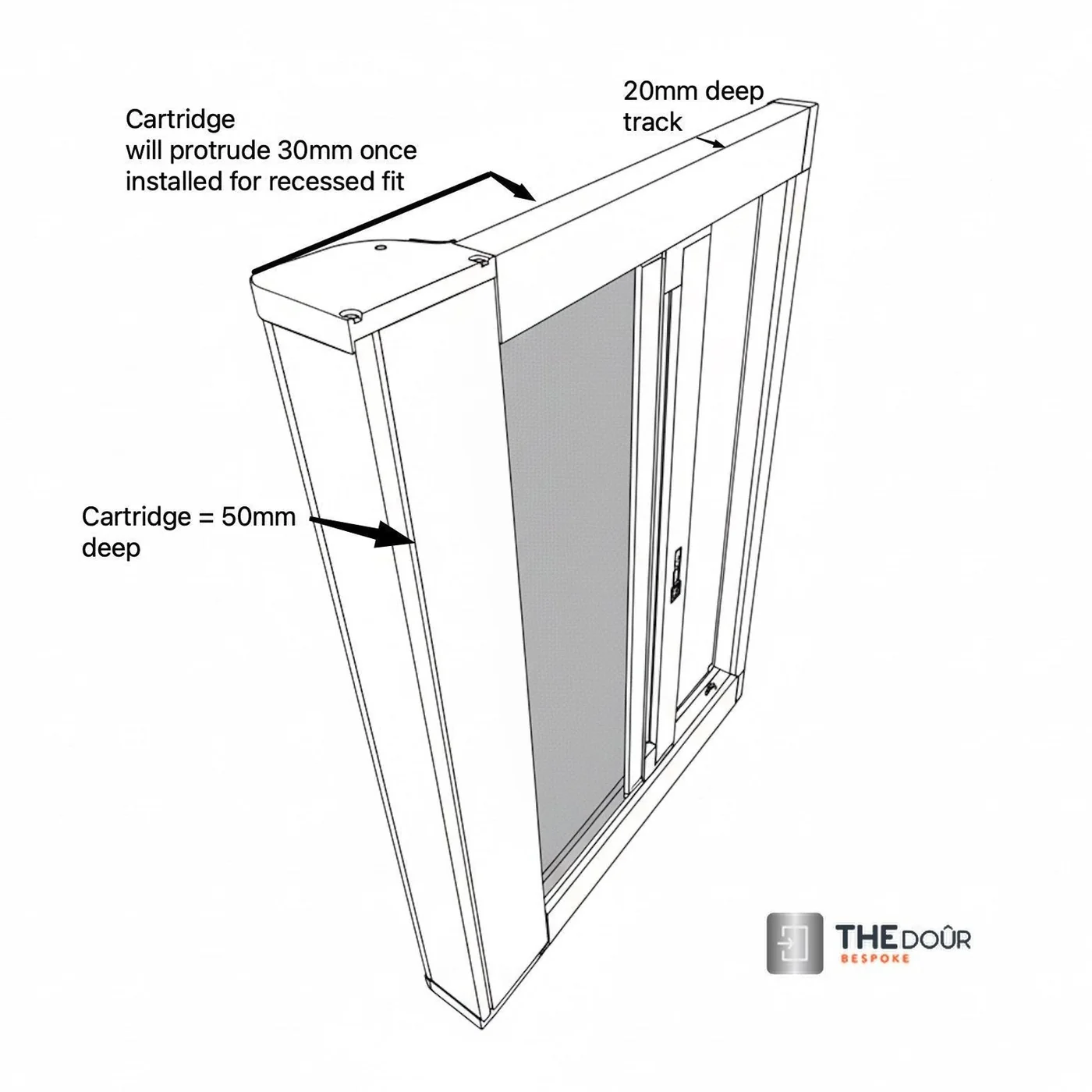

Roller cartridge - 50mm deep and 60mm wide
Handle - 30mm deep - 40/45mm wide
Cartridge and handle together - 100mm/105mm wide
End frame / Doorstop - 20mm deep and 15mm wide
